DVT-SERIES
|

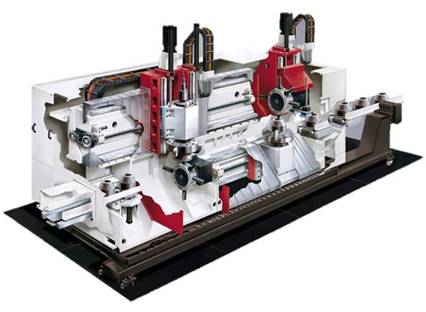

DVT-750 |
|
|
Working Area |
|
|
Max. Turning |
630 mm |
|
Max. Swing |
750 mm |
|
Workpiece height(chuck+workpiece) |
500 mm |
|
Axes |
|
|
Z-axis rapid traverse |
20 m/min |
|
X-axis rapid traverse |
32 m/min |
|
Main Spindle |
|
|
Max. Power |
55 KW |
|
Max. Torque |
1780 Nm |
|
Max. Speed |
2000 min-1 |
|
Tool carrier |
|
|
Driven Tools |
√ |
|
Numbers |
12 |
|
Tool system VDI 69880 |
60 mm |
|
Machine Specification |
|
|
Outline dimension |
LxWxH : 5,8x2,6x3,9 m |
|
Machine weight |
30000 kg |
|
Swing-Ø |
A |
750 |
|
Turn-Ø |
B |
630 |
|
X-Axis |
C1/C2 |
500/500 |
|
Z-Axis |
D |
600 |
|
Y-Axis |
I |
|
|
Workpiece height and clamping device |
E |
500/500 |
|
max. tool length |
F |
300 |
|
Tool adjustment measurement max. |
G/H |
+130 / -80 |
