DVT-SERIES
|

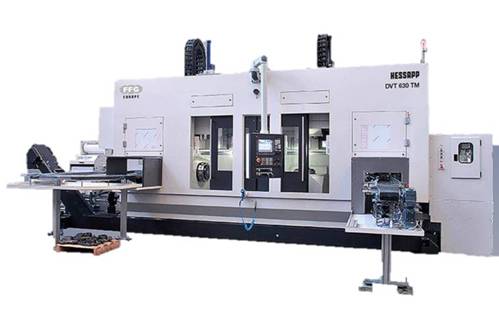

DVT-630 |
|
|
Working Area |
|
|
Max. Turning |
570 mm |
|
Max. Swing |
630 mm |
|
Workpiece height(chuck+workpiece) |
450 mm |
|
Axes |
|
|
Z-axis rapid traverse |
30 m/min |
|
X-axis rapid traverse |
45/60 m/min |
|
Main Spindle |
|
|
Max. Power |
80KW |
|
Max. Torque |
1150 Nm |
|
Max. Speed |
2800 min-1 |
|
Tool carrier |
|
|
Driven Tools |
√ |
|
Numbers |
12 |
|
Tool system VDI 69880 |
50 mm |
|
Machine Specification |
|
|
Outline dimension |
LxWxH : 5,7x2,6x3,6 m |
|
Machine weight |
20000 kg |
|
Swing-Ø |
A |
630 |
|
Turn-Ø |
B |
570 |
|
X-Axis |
C1/C2 |
350/350 |
|
Z-Axis |
D |
450 |
|
Y-Axis |
I |
± 50 |
|
Workpiece height and clamping device |
E |
450 |
|
max. tool length |
F |
270 |
|
Tool adjustment measurement max. |
G/H |
+120 / -90 |
