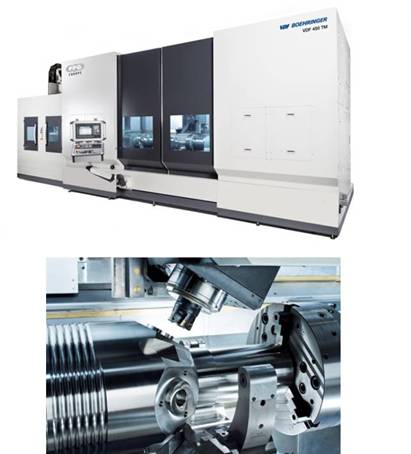

VDF 450 T

Working Range

Swing Diameter

700 mm

Turning Diameter

650 mm

X-axis Travel

700 mm

Turning Length

1300/2200/3400/4500 mm

Headstock Spindle

Spindle Nose

11

Drive Power(40%DC)

53/72 kw

Torque(40%DC)

3486/5340 Nm

Speed Max.

2800/2000 rpm

Tailstock

Inner Taper of Quill

MT 5

Turret

Tool Adapter System

HSK63, 100/Capto C6,C8

Y-axis Travel

-175~+210 mm
