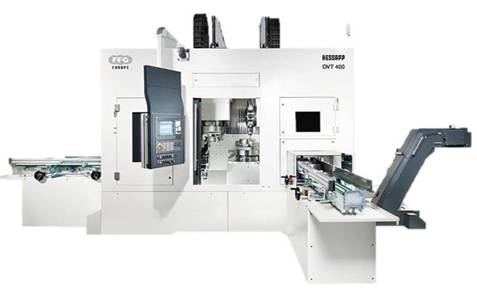

DVT-SERIES
|
DVT-400 |
|
|
Working Area |
|
|
Max. Turning |
450 mm |
|
Max. Swing |
510 mm |
|
Workpiece height(chuck+workpiece) |
470 mm |
|
Axes |
|
|
Z-axis rapid traverse |
30 m/min |
|
X-axis rapid traverse |
60 m/min |
|
Main Spindle |
|
|
Max. Power |
80KW |
|
Max. Torque |
795 Nm |
|
Max. Speed |
4000 min-1 |
|
Tool carrier |
|
|
Driven Tools |
√ |
|
Numbers |
2X12 |
|
Tool system VDI 69880 |
50 mm |
|
Machine Specification |
|
|
Outline dimension |
LxWxH : 3,8x2,7x3,8 m |
|
Machine weight |
16000 kg |
|
Swing-Ø |
A |
510 |
|
Turn-Ø |
B |
450 |
|
X-Axis |
C1/C2 |
250/260 |
|
Z-Axis |
D |
480 |
|
Y-Axis |
I |
± 75 |
|
Workpiece height and clamping device |
E |
470/360 |
|
max. tool length |
F |
250 |
|
Tool adjustment measurement max. |
G/H |
+120 / -90 |
