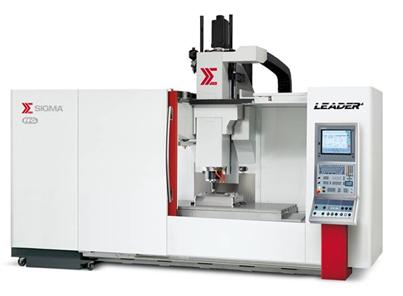

Small 3-axis VMCs
- movable worktable
*Cast iron structure to assure best rigidity even under the most
extreme machining
conditions.
*Wide machining capacity with Y-axis traverse of 810 mm and
load capacity on the
table up to 2500 kg.
*Several configurations and options available.
|
LEADER 5 - 6 - 7 |
|
|
X-axis traverse |
1,250 / 1,600 / 2,000mm |
|
Y-axis traverse |
810mm |
|
Z-axis traverse |
630mm |
|
X-Y-Z axes feedrate |
Up to 50m/min |
|
Max. spindle speed |
8,000 ÷ 15,000rpm |
|
Max. spindle power |
27kW |
|
Max. spindle torque |
235Nm |
