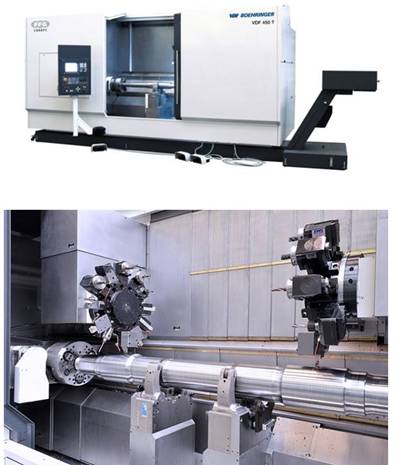

VDF 450 T

Working Range

Swing Diameter

700 mm

Turning Diameter

450(max.650) mm

X-axis Travel

340 mm

Turning Length

1300/2200/3400/4500 mm

Headstock Spindle

Spindle Nose

11

Drive Power(40%DC)

56/72 kw

Torque(40%DC)

3486/5340 Nm

Speed Max.

2800/2000 rpm

Tailstock

Inner Taper of Quill

MT 5

Turret

Tool Adapter System

VDI 50

Y-axis Travel

-100~+100 mm
