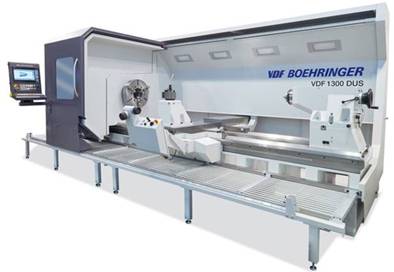

VDF 1300/1500
DUS
|
VDF |
1300 DUS |
1500 DUS |
|
Working Range |
||
|
Swing Diameter |
1300 mm |
1500 mm |
|
Turning Diameter |
950 mm |
1100 mm |
|
Turning Length |
1000-16000 mm |
|
|
Headstock Spindle |
||
|
Spindle Nose |
15 |
|
|
Spindle Bore |
200 mm |
|
|
Drive Power(60% DC) |
65 kw |
|
|
Torque(60% DC) |
12450 Nm |
|
|
Speed Max. |
1000 rpm |
|
|
Tailstock |
||
|
Quill Diameter |
160(220) mm |
|
|
Inner Taper of Quill |
MT 6 (SK 55) |
|
