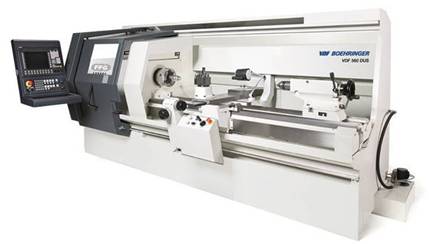

VDF

560 DUS

630 DUS

Working Range

Swing Diameter

570 mm

640 mm

Turning Diameter

365 mm

435 mm

Turning Length

1000(1800 option)mm

Headstock Spindle

Spindle Nose

A8(A11 option)

Spindle Bore

62(128 option) mm

Drive Power(60% DC)

25 kw

Torque(60% DC)

1800(2454 option) Nm

Speed Max.

2500(1750 option) rpm

Tailstock

Quill Diameter

100 mm

Inner Taper of Quill

MT 5
