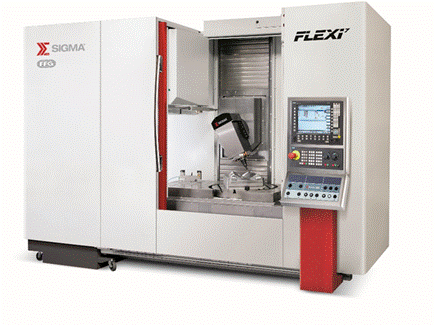

Simultaneous 5axis VMCs
- movable worktable
*High stability and rigidity thanks to cast iron monolithic
bed.
*high versatility thanks to a ±110° tilting head (torque
motor) and a built-in 660mm diameter rotary table
(torque motor).
*wide working volume: 840mm diameter cylinder with a
height of 1175mm from table surface.
|
FLEXI 5 - 7 |
|
|
X-axis traverse |
1,250 / 2,100mm |
|
Y-axis traverse |
700mm |
|
Z-axis traverse |
950mm |
|
X-Y-Z axes feedrate |
Up to 50m/min |
|
Tilting Head- B axis |
± 110° degrees |
|
Rotary Table–C axis |
660mm |
|
Rotary Table–C axis |
360°degrees |
|
Max. spindle speed |
12,000 - 18,000rpm |
|
Max. spindle power |
33kW |
|
Max. spindle torque |
180Nm |
