Item

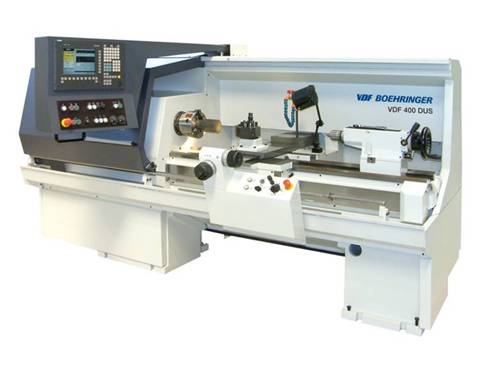

VDF 400 DUS

VDF 400 DUS

Working Range

Swing Diameter

420 mm

Turning Diameter

235 mm

Turning Length

1000 mm

Headstock spindle

Spindle Nose

A6

Spindle Bore

51 mm

Drive Power(60% DC)

11 kw

Torque (60% DC)

924 Nm

Speed Max.

3000 rpm

Tailstock

Quill Diameter

70 mm

Inner Taper of Quill

MT 4
