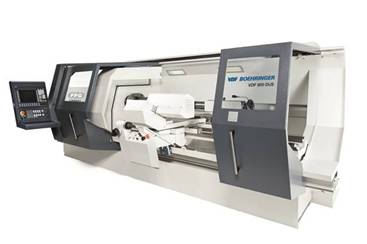

VDF 800/1000/1110
DUS
|
VDF |
800 DUS |
1000 DUS |
1110 DUS |
|
Working Range |
|||
|
Swing Diameter |
820 mm |
1000 mm |
1110 mm |
|
Turning Diameter |
500 mm |
700 mm |
810 mm |
|

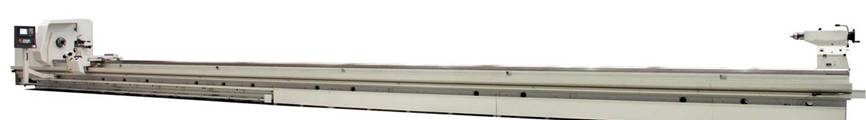

Turning Length(FRONT/TO) |
1000-20000 mm |
||
|
Headstock Spindle |
|||
|
Spindle Nose |
A11( option:A15或A20) |
||
|
Spindle Bore |
128 mm( option:200 mm或365 mm) |
||
|
Drive Power(60% DC) |
46kw |
||
|
Torque(60% DC) |
5073Nm( option:7628 Nm或7200 Nm) |
||
|
Speed Max. |
1600rpm( option:1200rpm或900rpm) |
||
|
Tailstock |
|||
|
Quill Diameter |
125 mm( option:160 mm) |
||
|
Inner Taper of Quill |
MT6( option:SK45) |
||
