Item

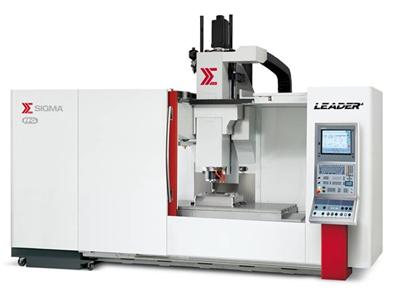

Small 3-axis  VMCs - movable worktable


*Cast iron structure to assure best rigidity even under the most

extreme machining conditions.
*Wide machining capacity with Y-axis traverse of 810 mm and

load capacity on the table up to 2500 kg.
*Several configurations and options available.


LEADER  5 - 6 - 7

X-axis traverse

1,250 / 1,600 / 2,000mm

Y-axis traverse

810mm

Z-axis traverse

630mm

X-Y-Z axes feedrate

Up to 50m/min

Max. spindle speed

8,000 ÷ 15,000rpm

Max. spindle power

27kW

Max. spindle torque

235Nm
