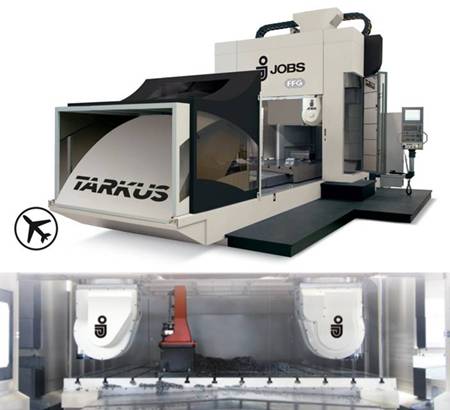

*Dual-Frame HV: exclusive architecture with fixed gantry
X-axis and mobile Z-axis (Jobs patent).
*High-volume removal capability on tough materials
(titanium and nickel alloys).
*Maximum structural rigidity and constant precision on
the entire Z-axis vertical stroke.
*Single mobile table or double pallet table.
*Dual-Spindle version available.
|
Moving table bridge type milling centres |
|
|
X-axis |
3300 - 4500 mm |
|
Y-axis |
2100 mm |
|
Z-axis |
1000 mm |
|
Axes speed |
up to 24000 mm/min |
|
Power |
from 41 to 44 kW |
