Small 3-axis VMCs - movable worktable
*X-axis sliding on two slide ways positioned at different
levels to assure a high moment of inertia and stability.
*dynamics adjustment during the milling in order to
optimize the dynamic behavior of the machine.
|

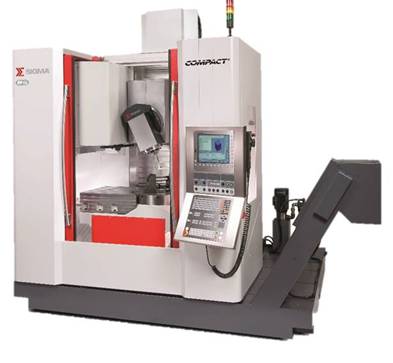

COMPACT 3A-M / 3A-L |
|
|
X-axis traverse |
1,000 / 1,250mm |
|
Y-axis traverse |
620mm |
|
Z-axis traverse |
600mm |
|
X-Y-Z axes feedrate |
m/min |
|
Max. spindle speed |
8,000 ÷ 18,000rpm |
|
Max. spindle power |
33kW |
|
Max. spindle torque |
235Nm |
