Item

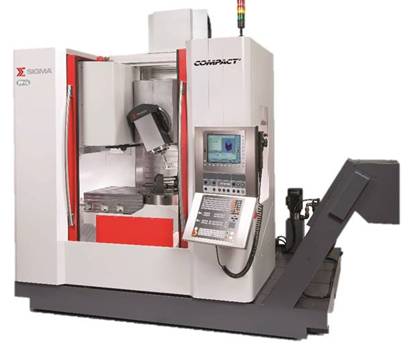

Small 3-axis  VMCs - movable worktable



*X-axis sliding on two slide ways positioned at different

levels to assure a high moment of inertia and stability.

*dynamics adjustment during the milling in order to

optimize the dynamic behavior of the machine.



COMPACT  3A-M / 3A-L

X-axis traverse

1,000 / 1,250mm

Y-axis traverse

620mm

Z-axis traverse

600mm

X-Y-Z axes feedrate

m/min

Max. spindle speed

8,000 ÷ 18,000rpm

Max. spindle power

33kW

Max. spindle torque

235Nm
