Item







Chamfering/deburring Machines

CD 250

manual loading

CDA 250

Automated

CDX 250

multi-head

Number of  chamfering/deburring stations

No.

2

2

2 x 5

Workpiece dia range

mm

15 – 250

15 – 250

15 – 250

Module, max.

mm

8.0

8.0

8.0

Workpiece length, max. without automation

mm

580

-

450

580

400

700

Standard Workpiece face width, max.

mm

105

105

50

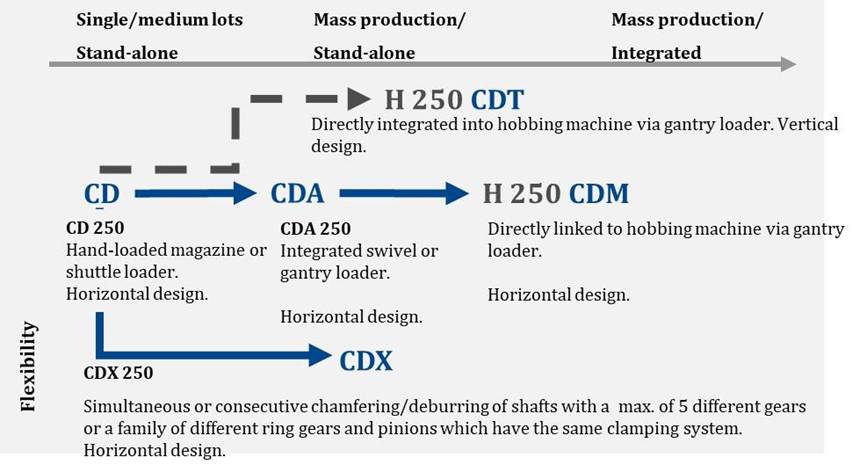

All machine models of the CD series are modularly constructed with common components.

Advantages:

*Latest technology developments flow into all models of the series (drives, tool heads, automation).

*Improved spare part availability.
*Technology out of one hand
one responsible contact.

*Solutions for a variety of applications.

*Wet and dry processing.
