Item

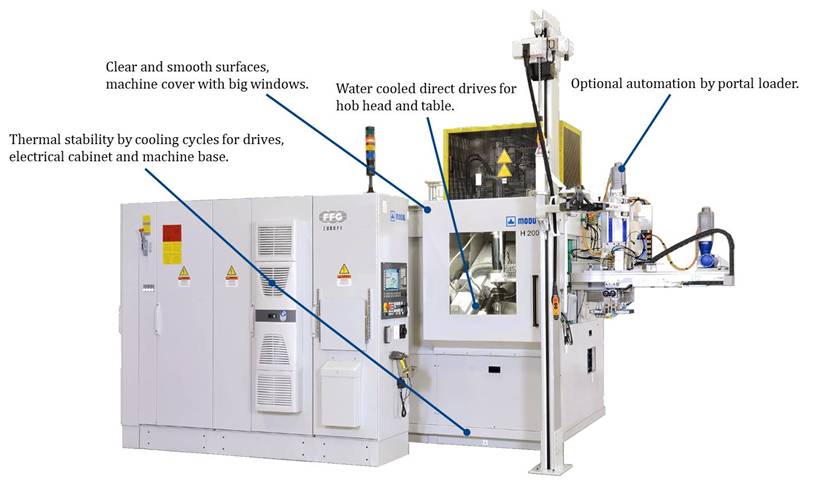

Gear Hobbing Machines „s“

H80

H 100/130

H 160

H 200

Max. workpiece diameter

mm

80

100 / 130

160

200

Max. Module(hobbing)

mm

4.0

Hob spindle power and torque

Kw;Nm

15;190

Hob spindle rpm.

min-1

250-3500 (optional 5000)

Radial travel range (X)

mm

10-100

25-115

45-135

60-150

Axial (z) / Tangential (Y) travel

mm

100-450 / 200

Hob head swivel angel (A)

+/- 45

Max. Hob diameter

Mm

90

Table rpm.

min-1

10 -1000

Average machine dimensions

Cm

230 x 260 x 285 (without automation)
