DVH-SERIES
|

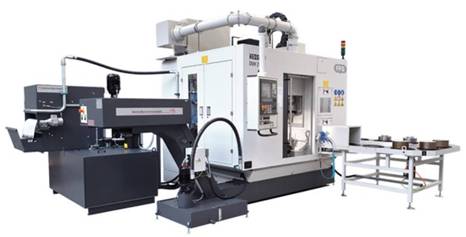

DVH-200 |
|
|
Working Area |
|
|
Max. Turning |
220 mm |
|
Max. Swing |
260 mm |
|
Workpiece height(chuck+workpiece) |
360 mm |
|
Axes |
|
|
Z-axis rapid traverse |
30 m/min |
|
X-axis rapid traverse |
60 m/min |
|
Main Spindle |
|
|
Max. Power |
35 kw |
|
Max. Torque |
210 Nm |
|
Max. Speed |
6500 min-1 |
|
Tool carrier |
|
|
Driven Tools |
√ |
|
Numbers |
12 |
|
Tool system VDI 69880 |
40 mm |
|
Machine Specification |
|
|
Outline dimension |
LxWxH : 2,5x2,4x2,9 m |
|
Machine weight |
6500 kg |
|
Swing-Ø |
A |
260 |
|
Turn-Ø |
B |
220 |
|
X-Axis |
C |
220/200 |
|
Z-Axis |
D |
360 |
|
Workpiece height and clamping device |
E |
320 |
|
max. tool length |
F |
180 |
|
Tool- adjusting measurement max. |
G/H |
-100 / +120 |
