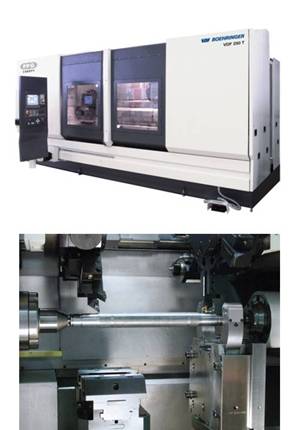

VDF

180T

250T

300T

Working Range

Swing Diameter

620 mm

Turning Diameter

290 mm

350 mm

X-axis Travel

200 mm

Turning Length

900 mm

850/1850 mm

Headstock Spindle

Spindle Nose

8

11

Drive Power(40%DC)

53 kw

36 kw

Torque(40%DC)

632 Nm

2200 Nm

Speed Max.

3000 rpm

2800 rpm

Gear Steps

No.1

No.2

Tailstock

Inner Taper of Quill

MT 4

Turret

Tool Adapter System

VDI 40

Y-axis Travel

-30~+50 mm
