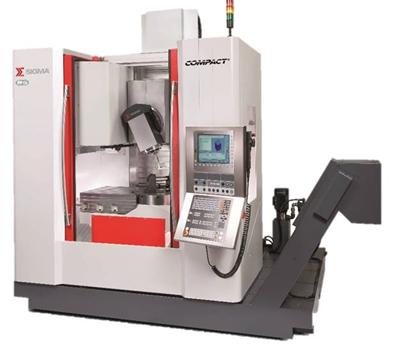

 Small simultaneous 5-axis VMCs with movable worktable



*Monolithic cast iron structure: bed, column, and headstock.

*Continuous tilting milling head (B-axis ±110° ) driven by

torque motor.

*Rotary table (C-axis) with torque motor integrated in the

moving worktable with 660mm diameter.



COMPACT  5°

X-axis traverse

1150mm

Y-axis traverse

570mm

Z-axis traverse

800mm

X-Y-Z axes feedrate

Up to 40m/min

Tilting Head- B axis

± 110° degrees

Rotary Table–C axis

550mm

Rotary Table–C axis

360°degrees

Max. spindle speed

12,000 ÷ 18,000rpm

Max. spindle power

33kW

Max. spindle torque

180Nm
